Biobase Automated Liquid Handling Systems Station Pipetting Using Sample Processing System

Overview

Basic Info.

Model NO.	BK-PR48
Throughput	1-48
Transport Package	Carton and Wood
Specification	827*794*1223mm
Trademark	BIOBASE
Origin	China
HS Code	8479899990
Production Capacity	50000units/Year

Product Description

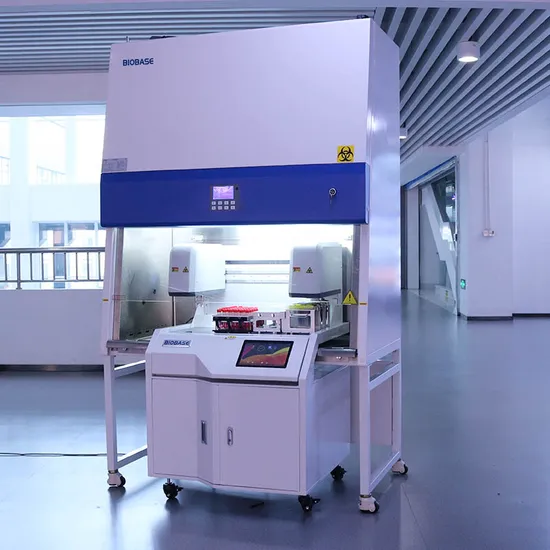

BIOBASE Automated Sample Processing System

Introduction:
The Automated Sample Processing System can be used with a biological safety cabinet. Could complete lid opening/closing, dispensing, proteinase K/internal control addition, it only takes 16 minutes to transfer 48 samples at one time, which helps laboratories quickly improve their large-scale nucleic acid detection capabilities
Applications:
Sample processing for clinical diagnosis, surveillance, food safety, forensic identification, scientific research, etc.,

Product Parameters

Model	BK-PR32	BK-PR48
Throughput	1-32	1-48
Processing Time	32 samples/10min	48 samples/16min
Sample Type	Plasma, serum, whole blood and other samples
Sample Rack	1Pcs,3*12 with locking device (compatible with a variety of sampling tubes)	1Pcs,6*8 with locking device(compatible with a variety of sampling tubes)
RobotArm	1 pcs (Dispensation arm )	2 pcs (Dispensation arm and Screw cap arm)
Plate Position	2 pcs(Compatible with l-shaped and square boards)	3 pcs (Compatible with multi-specification deep-well plates)
Tip Position	3 pcs (Including tip waste box position)
Reagent Rack	1 pcs (4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube)
Protective Function	Can be used in a biological safety cabinet External droplet catch tray design With air-tight and anti-drip design
Liquid Detection	Pneumatic liquid level detection principle, intelligent detection of blocked needle
Pipetting Volume	5-100μl(1000/50μl Tip)
ipetting Accuracy	10μl, CV≤1.5%,Accuracy≤6.0%,5oμl Tip 5oμl, CV≤1.0%,Accuracy≤2.0%,1000μlTip 100μl, CV≤0.5%,Accuracy≤2.0%,1000μl Tip
Power Supply	220V,50/60Hz;110V,60Hz
External Size (W"DH)	540*637*1113mm	827*794*1223mm
Net Weight	56kg	100kg
Package Size (W'DH)	670*810*1314mm	Main instrument:925*925*817mm; Base cabinet:1030*995*1045
Gross Weight	76kg	Main instrument:115kg; Base cabinet:105kg

Packaging & Shipping

Company Profile

Founded in 1999, having over 2500 employees (till July,2020).BIOBASE Group is a new high-tech enterprise focusing on development, production and ,management of scientific equipment,In Vitro Diagnosis (IVD) instrument and reagent.BIOBASE Group is specialized in products of S areas including .(IVD) medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products.cold chain products, software products, clean room project.

• Many factories, one-stop shopping

• Participated in many exhibitions


• Won many big projects


After Sales Service

• Professional after-sales team for you escortOur Exhibition hall:

If you are interested in our products, please contact us

•
